Mašina za završnu obradu koja je u potpunosti prilagođena potrebama kupaca. Za više informacija o Lemorau MEBR+ Advanced i pročitajte naš tekst na engleskom jeziku.

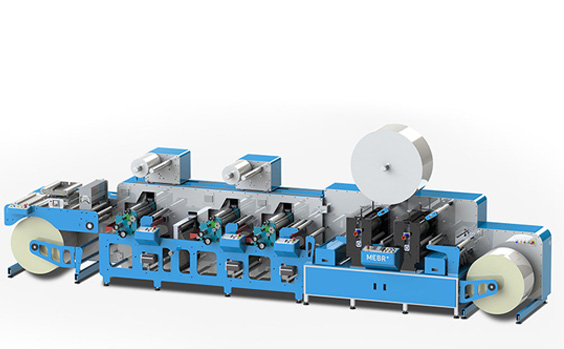

430 mm is a modular digital finishing machine that was fully customized according to the customer needs. The machine is full servo drive equipped and the three flexo stations allow the customer print on the back, varnish and cold foil in only one single pass. With this new machine range, it enables digital printed webs to be embellished, coated and finished quickly and economically.
Machine features:
Maximum web width 430 mm
Maximum semi-rotary speed 80 m/min (262,5 ft/min.) dependent on plate size
Maximum rotary speed 120 m/min (394 ft/min.)
Maximum unwinder diameter 800mm, servo driven, with automatic stop at master roll end
Splice table with pneumatic clamps
Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials
Corona treatment system
3 servo drive gearless UV flexo stations in register customized according to existing tools from the customer

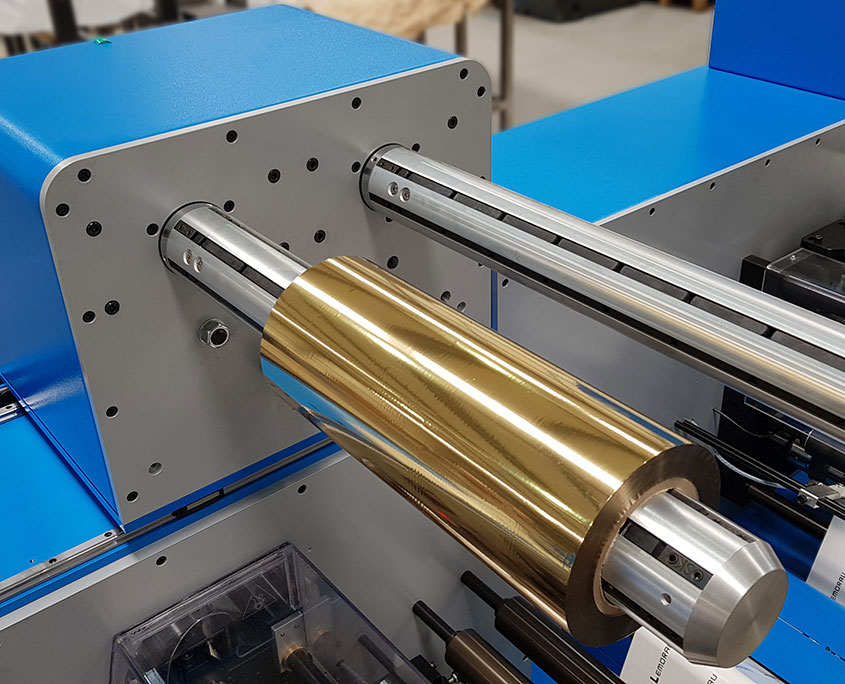

2 movable cold foil/ UV lamination stations
Turnbar which allows printing on the back on the first flexo station
2 die cutting stations in register customized according to existing tools from the customer
Die cutting station number 1: semi-rotary/rotary die cut, Pressure gauges, Electronic anvil roll for adjustable gap
Die cutting station number 2: Rotary only, Movable anvil roller to allow die cut in front and in the back in one single pass
1 meter waste rewinder
Back scorer system
Electronic Counter (Labels/ Meters/ Rolls)
Maximum rewinder diameter 800mm, servo driven
Deflation software for use of rotary flexible dies on the semi-rotary die cutting
Automatic web tension control system by servo motors – Constant and Taper tension
